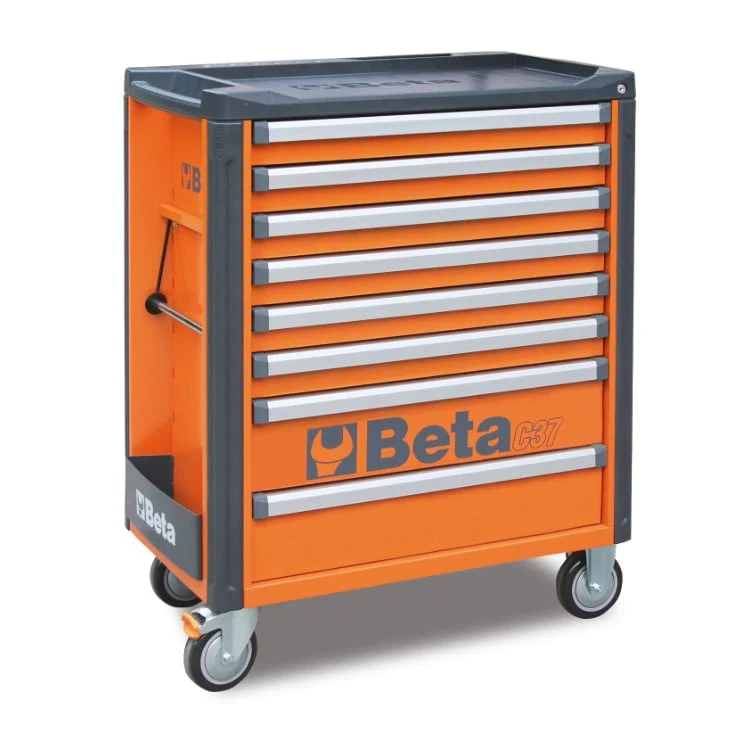

Beta Tools Mobile Roller Cab with 8 Drawers C37/8 Workshop

Kindly Note : This item is "Made to Order" and lead time is about 4-12 weeks

Rigid steel construction with a powder-coated finish and a reinforced multipurpose worktop for workshop use. Eight drawers (six shallow, two deep) on ball-bearing slides with full-length quick-release aluminium drawer runners and foamed rubber base mats for tool protection. Four 4.92 in castors (two fixed, two swivel, one with brake) provide mobility while a centralized front lock secures all drawers. Integrated tote-tray holders, screwdriver ports and a V-shaped groove on the top improve parts handling and pipe work. Corner bumpers protect vehicle panels in garage environments and the unit is designed for heavy static loads up to 2,204 lb. Delivered with adjustable side bottle and paper holders and drawer anti-tilt/quick-release features for rapid reconfiguration.

Specifications

Material & finish	Powder-coated steel body with reinforced steel worktop; finish: RAL 2011 (orange) where specified
External dimensions (W×D×H)	31.61 × 18.98 × 39.53 in (803 × 482 × 1004 mm)
Drawer internal footprint	23.15 × 14.45 in (588 × 367 mm)
Drawer heights	6 × 2.95 in (75 mm) shallow drawers; 2 × 5.91 in (150 mm) deep drawers
Drawer slides	Ball-bearing full-extension slides with aluminium quick-release system along full length of drawers
Castors	4 × Ø 4.92 in (125 mm) castors — 2 fixed, 2 swivel (1 swivel with brake)
Static load capacity	1000 kg (2,204 lb) static load capacity
Weight (empty)	160.9 lb (73 kg) approximate shipping weight
Included accessories	Foamed rubber drawer mats, centralized front safety lock, adjustable side bottle and paper holders, tote-tray locations and screwdriver holes



Dimensions



Downloads:
Operating Manual
