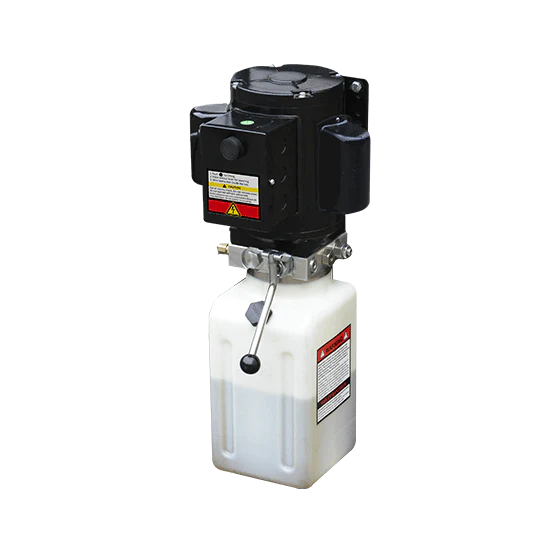

AMGO 110V Hydraulic Manual Power Unit 6L Tank 25MPa
This 110V power unit offers a versatile and reliable solution for home use, compatible with a wide range of car lifts including Single Post Lifts, Parking Lifts, Boat Storage Lifts.
Compatible with AMGO models:
407-P | 407-HP | 408-P | 408-HP | 408-HPX | SL-7 | SML-7 | SPL-6 | MR06 | MRP06 | LR06 | LR10 | MRL07 | MC-1200.
Features
- With ETL Certificate, 110V single-phase 60Hz AC;
- Equipped with 6L high-density polyethylene oil tank;
- Manual Detrol release valve;
- High pressure gear pump with a displacement 0.8cc/r, the highest pressure up to 25MPa;
- Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
- Adjustable reflux speed by throttle valve;
- Longevity & easy maintenance
- Oil outlet is provided on both sides
Specifications
| Part No. | 071103 |
|---|---|
| L | 23 3/16" |
| L1 | 9 5/16" |
| L2 | 13 7/8" |
| Voltage | 110v Single Phase |
| Frequency | 60Hz |
| Power | 1.0HP |
| Pressure | 21MPa |
| Displace ment | 0.8cc/r |
| Tank | 6L |
| Oil Outlet | 3/8SAE |
